Product Details:
|
|
Place of Origin: | CHINA |
---|---|
Brand Name: | ISUDAR |
Certification: | CE, ROHS |
Model Number: | NA04A7KA0908 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 4pcs |
Price: | negotiation |
Packaging Details: | In carton |
Delivery Time: | 3-4days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 300pcs/day |
Detail Information |
|||
Name :: | Car Navigation System | For Vehicle Brands/Mode: | Kia K5/ Optima |
---|---|---|---|
Operating System: | Android 7.1.1 | Voltage: | 12V |
Out Power: | 4*45W | Standard: | GPS+IPOD+BT+Radio+AUX IN+MIRROR LINK+Radio+FM/AM |
Highlight: | bluetooth sat nav car stereo,car navigation & entertainment system |
Product Description

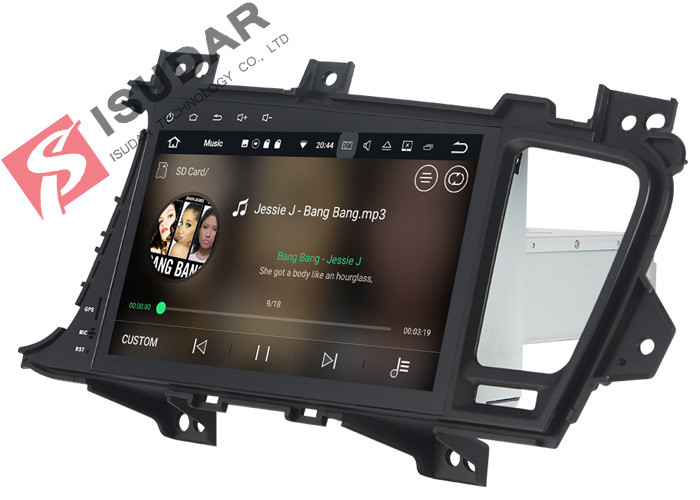

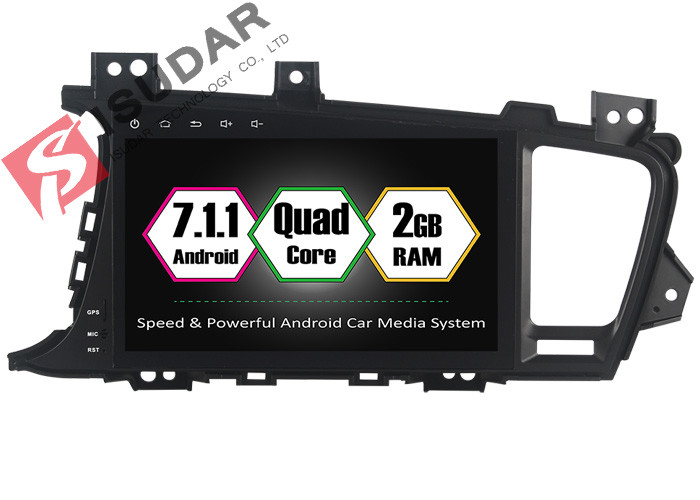

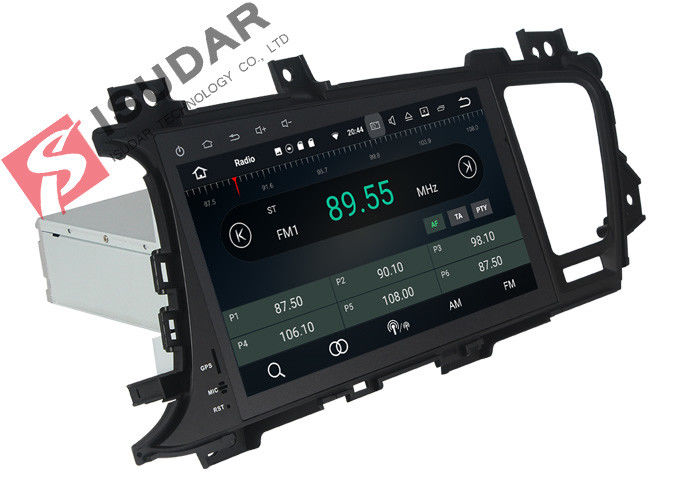

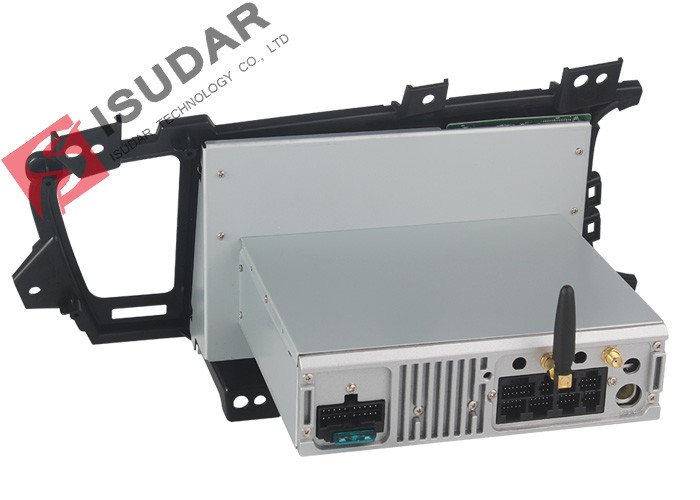

2 din 9" Multi-touch Screen Android 7.1.1 Auto Car Stereo Quad Core 1080P Video CANbus GPS Navigation OBD2 For Kia K5 Built-in WiFi / 1080P / Built-in DAB+ Tuner / Car Standard Radio Module
Suit for :
Kia K5 / OPTIMA 2011- Kia Magentis (Europe, Canada, Australia, Brazil)
Kia Lotze (South Korea)
Kia Lotze Advance (KDM Model Year)
Kia Lotze Innovation (KDM Facelift)
Kia Optima Regal (KDM Facelift)
Kia K5 (South Korea, China, Indonesia)
2011- LX / EX
Featuers :
Multi-touch Screen & all Touch Panel
Android 7.1.1 An Experience Unlike any Other on a Car Stereo Unlike any Other
Quad Core, the most Advanced CPU ever in a Car Stereo
Larger 16G ROM, More Possibilities!
The Most Professional Car Android Hardware Release Ever
1. Equipped with the professional and technical grade core-board, the PF75OLOA-B offers smooth and fast operating features.
2. Car Standard Radio Module: NXP6686, strong anti-interference ability, good radio signal receiving
3. Power Amplifier Chip: TDA7388 High-fidelity and powerful audio effects
4. Core-board: For In-car Use, Concise and Durable
5. CPU Processor: Quad Core 32Bit
6. ISUDAR core-board affixed with 3 screws for increased stability and easy to removal, while others welded on the main board which has very complex layout and hard to remove.
7. Laser Head: Hitachi 1200XH Good compatibility, durable.
8. Spindle Motor: Corepine
9. ISUDAR Units with Car Standard Radio Module: Smoother and faster radio signal receiving
10. Other After-market Units with Ordinary Radio Module: Weak radio signal and fuzzy sound
Screen Type | All touch panel , without Physical button |
Voltage | 10.5-15.5V |
Current | <6MA |
Operating temperature | -30 degrees to 75 degrees |
Platform | ROCKCHIP RK-PX3 Android 7.1.1 |
Dominant frequency | Quad-Core 1.6GB |
RAM | 2G |
ROM | 16G |
Pixels | 1024*600 |
Touch screen | Capacitive |
MCU | STM32F091VCT |
Navigation Chip | MG1613S |
Radio Chip | NXP6686 |
Bluetooth Chip | GOC-MD-725 |
Amplifier function Chip | TDA7388 |
TV mode | CMMB/ISDB/DVB-T/DVB-T2/ATSC |
Fat format mobile hard-disk | MAX 1TB(Need external power) |
USB device | Support |
TF/SD card | MAX 32 GB |
Video input | 1 Route |
Audio input | 2 Route |
Rear view camera video input | 1 Route |
USB DVR video input | Support |
Video output | 1 Route (DVD Video output) |
Audio output | 4 Route |
Subwoofer output | Support |
Europe Digital Audio Broadcasting (DAB) | USB |
